In the realm of material science, chemistry, geology, and pharmaceuticals, understanding a substance at its atomic level is essential. Structural analysis enables researchers and manufacturers to determine composition, quality, and performance traits. One instrument that has become central to this mission is the xrd machine—a powerful tool for unraveling the internal arrangement of atoms within crystalline materials.
This article explores the purpose, working principles, applications, and advantages of using an xrd machine. Whether you’re a seasoned researcher or new to analytical instrumentation, this guide provides an in-depth look at how x-ray diffraction technology is transforming laboratories and industries worldwide.

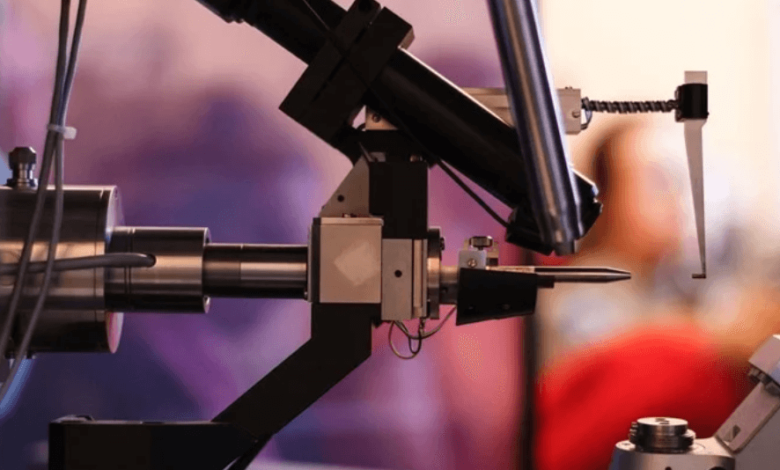

What is an XRD Machine?
An xrd machine, or x-ray diffraction machine, is a scientific instrument used to study the atomic and molecular structure of crystalline materials. By directing X-rays onto a sample and measuring the angles and intensities of the diffracted rays, it produces a diffraction pattern that reveals critical information about the material’s internal lattice structure.
This technique, governed by Bragg’s Law, allows scientists to determine properties such as:
- Phase composition
- Crystallite size
- Lattice parameters
- Degree of crystallinity
- Residual stress
- Preferred orientation (texture)
Whether in a research lab or an industrial production line, the xrd machine plays a crucial role in ensuring material integrity and performance.
See also: How Technology is Transforming Logistics in Hong Kong
How Does an XRD Machine Work?
The core function of an xrd machine relies on the interaction between incident X-rays and a sample’s crystalline structure. Here’s how the process works:
- X-ray Generation: A sealed X-ray tube emits monochromatic X-rays, typically using a copper (Cu) or cobalt (Co) anode.
- Sample Exposure: The X-rays hit the sample, which is positioned on a rotating stage.
- Diffraction: At specific angles, the X-rays are diffracted by the planes of atoms in the crystal, producing constructive interference.
- Detection: A detector captures the diffracted rays and records the intensity as a function of the angle (2θ).
- Data Analysis: Software processes the diffraction pattern, compares it with known standards, and identifies the crystal structure and phases.
The output—a diffraction pattern—is essentially a fingerprint of the crystalline material being analyzed.
Components of an XRD Machine
To perform this complex analysis, an xrd machine consists of several essential components:
- X-ray Source: Usually a sealed tube with a metallic anode that generates the X-ray beam.
- Goniometer: Precisely moves the sample and detector to capture diffraction at various angles.
- Sample Holder: Accommodates powdered, solid, or film samples.
- Detector: Measures the intensity of diffracted X-rays, either as a point, linear, or 2D array.
- Shielding Enclosure: Ensures safe operation by containing radiation.
- Software Suite: Processes raw data, matches patterns, and generates reports.
Why the XRD Machine is Vital in Science and Industry
The xrd machine is not just for academic research—it is an essential tool across multiple sectors:
🔬 Pharmaceuticals
- Identifying polymorphs in drug development
- Verifying active pharmaceutical ingredient (API) crystallinity
- Monitoring stability during formulation and storage
🧱 Construction and Cement
- Phase analysis in clinker and concrete
- Determining hydration levels in cement
- Ensuring compliance with industry standards
🧪 Metallurgy
- Analyzing steel and alloy microstructures
- Evaluating heat treatments and phase transformations
- Detecting residual stresses in machined parts
🧬 Nanotechnology
- Measuring nanoparticle size
- Investigating crystal defects and dislocations
- Validating the synthesis of new nanomaterials
🪨 Geology and Mining
- Mineral identification
- Clay and rock classification
- Supporting exploration and resource estimation
Types of XRD Machines
While the core principle remains the same, various types of XRD machine serve different needs:
🖥️ Desktop or Benchtop XRD Machines
Compact units ideal for laboratories with limited space. Great for routine phase analysis and educational purposes.
🏭 Floor-Standing XRD Systems
High-capacity instruments designed for advanced research, in-depth crystallography, and large sample volumes.
🧳 Portable XRD Machines
Used in the field for geological surveys or mining operations. Lightweight and battery-powered.
Benefits of Using an XRD Machine
Adopting an xrd machine offers numerous scientific and operational advantages:
✅ Non-Destructive Analysis
Samples remain intact after testing, making it ideal for expensive or irreplaceable specimens.
✅ High Sensitivity and Accuracy
Capable of detecting minute structural differences and phase changes.
✅ Fast Turnaround
Modern systems can complete scans in minutes, ideal for high-throughput environments.
✅ Automated Workflow
Most machines offer pre-set measurement routines and pattern-matching, minimizing user error.
✅ Extensive Application Range
From powder analysis to thin-film studies, the xrd machine can handle a broad array of materials and formats.
Software and Data Interpretation
Modern xrd machines come equipped with intelligent software that simplifies data acquisition and interpretation. Key features include:
- Pattern Matching: Using databases like ICDD PDF-4+
- Quantitative Phase Analysis: Determining percentages of different phases
- Crystallite Size Estimation: Based on peak broadening (Scherrer equation)
- Rietveld Refinement: For full-pattern fitting and complex structural modeling
These tools help both novice and expert users get reliable, publication-quality results.
Real-World Examples
“Our pharmaceutical lab uses an xrd machine to identify polymorphs during drug development. Without it, we couldn’t guarantee product stability.”
— R&D Scientist, Biotech Firm
“We routinely use our XRD system to check the consistency of the cement batches. It’s an essential tool for maintaining our product standards.”
— Quality Manager, Cement Manufacturing Plant
“As a university teaching lab, our desktop xrd machine allows students to conduct real crystal structure experiments, enhancing their understanding.”
— Physics Professor, Academic Institution
Tips for Choosing the Right XRD Machine
If you’re considering investing in an xrd machine, keep these factors in mind:
- Sample Types: Choose a system that supports your material types—powders, films, or solids.
- Resolution Needs: High-precision applications may require finer angular resolution.
- Speed and Throughput: Evaluate how quickly the system can analyze and process samples.
- Software Usability: Look for intuitive, customizable software with built-in libraries.
- Support and Training: Consider the availability of technical support, warranty, and user training.
The Future of XRD Machines
As technology progresses, the xrd machine continues to evolve. Future trends include:
- AI-Assisted Phase Analysis: Faster, more accurate interpretation of complex patterns
- Cloud Integration: Remote data access and sharing among teams
- Miniaturization: Smaller, more affordable systems for on-site analysis
- Automation: Robotic sample changers and batch processing capabilities
- Green Technology: Lower power consumption and environmentally friendly designs
Conclusion
The xrd machine has become a cornerstone of modern analytical science. With the ability to reveal the inner structure of materials without damaging them, it is an invaluable asset in quality control, research, and innovation. As more industries embrace advanced material characterization, the demand for accessible and efficient XRD systems will only grow.
Whether you’re in pharmaceuticals, manufacturing, geology, or academia, investing in an xrd machine is a step toward deeper insights, better quality, and stronger scientific results.
